Sure-Foot Guardrail

Key Features

Compatible Systems
Sure-Foot guardrail is available in 4 compatible systems suited to particular roof edge conditions.
Modular Design
For ease of specification.
Kit Form
Systems are supplied in kit form for quick installation and are exceptionally stable, lightweight and durable.
No On-Site Bending/Welding Required
Results in time and cost savings.

Sure-Foot Guardrail Systems

Overview

The Sure-Foot guardrail range of lightweight edge protection systems is ideal for collective fall protection measures on flat roofs. Systems are supplied in kit form for easy handling and installation.

This system is key to meeting relevant working at heights HSE regulations.

Downloads

Range Summary

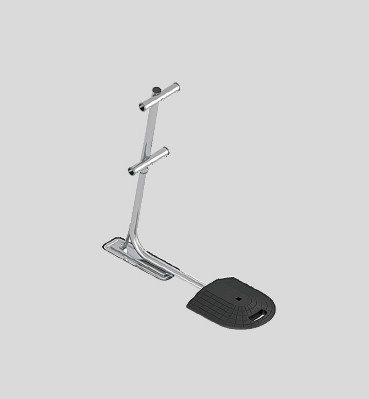

Guardrail Freestanding System

Guardrail Freestanding is installed completely freestanding, using a proven counterbalance weight to provide the requisite stability
This non-penetrative solution ensures there is no need to drill or secure through the roof membrane

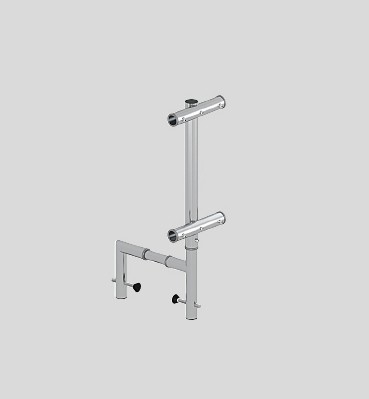

Guardrail Parapet System

Guardrail Parapet is ideal for roofs where the existing parapet wall does not provide adequate fall protection
The system uses a fully adjustable bracket to clamp over an existing parapet wall
The bracket can be fully adjusted to suit wall widths (300-550mm) and height of top and mid rails
The sliding top riser unit is used to adjust the overall height of the top rail

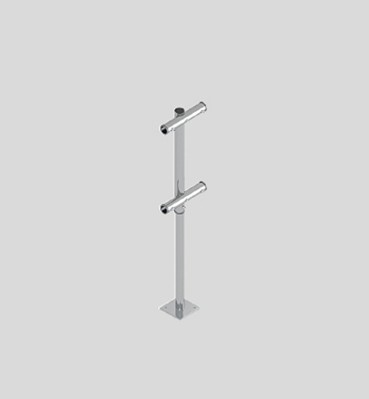

Guardrail Topfix System

Guardrail Topfix mechanically secures directly to a wall or coping top and can be used to permanently protect open edges to stairwells, open shafts, or loading bays
An extended base plate can be added for use on trapezoidal or standing seam roof sheet systems
Height adjustment options of the top and mid rails are possible using the sliding top riser

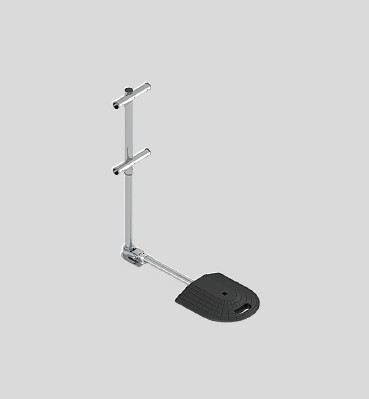

Guardrail Folding System

Guardrail Folding offers all the benefits of the Freestanding system but also folds down flat onto the roof when not in use
This non-penetrative solution is the ideal solution when collective edge protection is required in visually sensitive areas

Typical Options

Quick Tip

What minimum height must a Guardrail be?

The main Guardrail must be at least 950mm in height, with intermediate rails leaving no gap greater than 470mm and with toe boards where required – see HSE publication ‘Working on Roofs’.
