Caltech Alpha

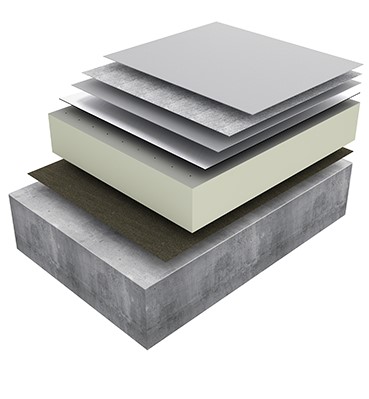

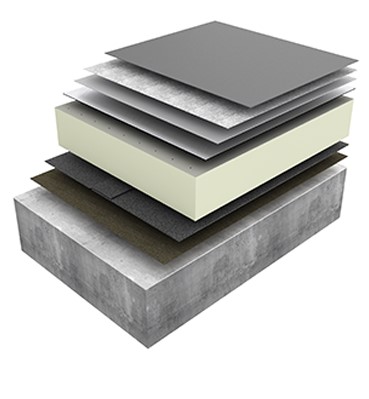

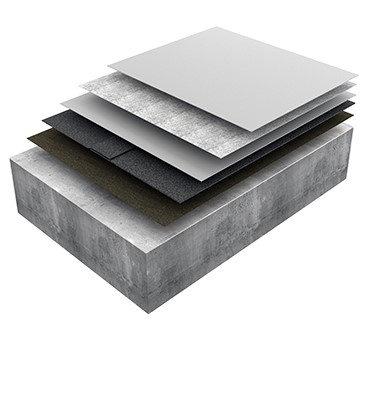

Caltech Full Build Up

Overview

Caltech Alpha High Performance Roofing Systems comprise a single-component, cold-applied, fully reinforced, extremely low odour, moisture-triggered polyurethane based membrane, insulation boards and air and vapour control layers (AVCL). Caltech Alpha is applied in liquid form in two layers with an embedded reinforcing glass fibre matt to form a seamless, durable, smooth waterproof finish. The system is fully adaptable to meet the individual requirements of every project for use across all building sectors in both refurbishment and new-build roofing projects.

Key Features & Applications

  • Waterproofing of flat and pitched roof structures, communal walkways, podium decks and terrace roofs
  • For new build construction and refurbishment projects
  • BBA approved, fully warranted systems are available with a life expectancy in excess of 25 years
  • Applicable to existing concrete, roofing felt, brickwork, asbestos cement decks (subject to condition and priming requirements)

Characteristics and Advantages

  • Caltech Alpha is an extremely low odour, single component product that requires no mixing therefore is easy to use and ready immediately
  • Fully Cold-applied so requires no heat or flame
  • Economic – provides a cost efficient life cycle extension of failing roofs
  • Retains flexibility at low temperatures
  • Minimal disruption and low maintenance
  • Can be applied all year round above 2°C
  • Approved to ETAG 005 (Part 6)

Application Details

  • Quality of substrate must be assessed before application (see product datasheet)
  • When preparing substrate the surface must be sound, of sufficient strength, clean, dry and free of dirt, oil or grease. In cases of cementitious substrates outgassing must also be taken into consideration
  • Surface must be dry and within +2 °C min. / +30 °C max
  • Gently stir Caltech Alpha before use
  • Add Caltech Alpha Accelerator
  • Apply Caltech Alpha using a roller

Featured Project

White House Works, Bold Road, Sutton, St Helens, Merseyside, WA9 4JG
